Concrete Rain Gutter Mold

u-block mold, lintel block mold, concrete header mold

DRAX Mold Manufacturing Process

High-quality block machine molds depend heavily on precision manufacturing. DRAX follows a strict production workflow.

Raw Material Selection

High-grade alloy steel materials are selected according to production capacity requirements and expected wear resistance.

CNC Precision Processing

Advanced CNC machining equipment ensures:

• Accurate mold cavity dimensions
• Consistent tolerances
• Smooth structural alignment

Heat Treatment Technology

Professional heat treatment improves:

• Surface hardness
• Impact resistance
• Anti-wear capability

Precision Grinding and Finishing

Final grinding operations guarantee:

• Flatness precision
• Surface smoothness
• Dimensional accuracy

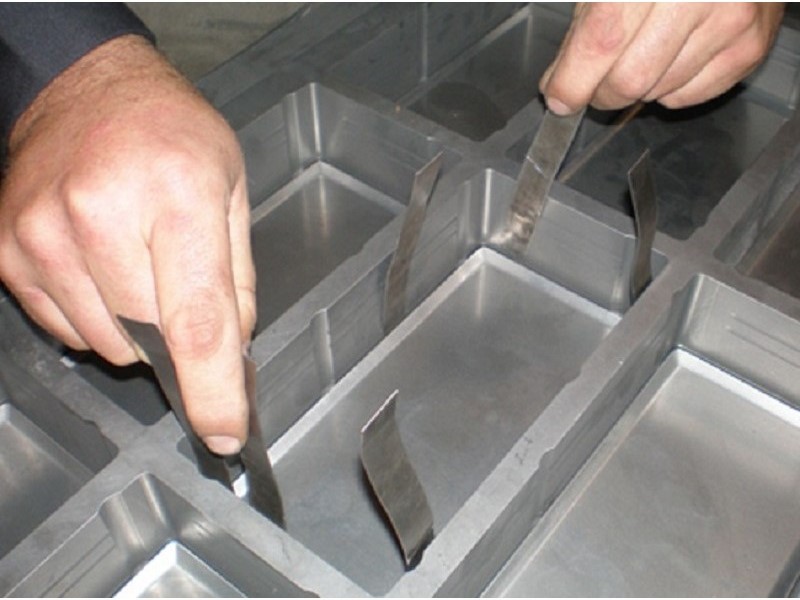

Quality Inspection

Every mold undergoes strict testing procedures before shipment, including:

• Dimensional verification
• Hardness inspection
• Structural integrity testing

Why Choose Drax Mold for Your Concrete Production?

• Precision Engineering with 0.2mm Tolerance
  We utilize advanced CNC wire-cutting and automated machining to ensure every brick machine mold meets exact specifications. This precision guarantees a perfect fit for your automatic production line and reduces machine wear.
• Superior 62HRC Hardness & Carburizing Process
  Our specialized heat treatment and carburizing process create a high-strength surface with a hardness of 62HRC. This industry-leading durability ensures your concrete block molds maintain their shape under extreme pressure.
• Extended 150,000+ Cycle Lifespan
  Built from premium alloy steel, Drax molds are engineered for longevity. With a proven lifespan of over 150,000 cycles, our products significantly lower your long-term block machine spare parts costs and maximize factory ROI.
• Universal Compatibility with Global Brands
  Our engineering team specializes in producing high-quality replacement paver molds and hollow block dies fully compatible with Zenith, Hess, Masa, and Columbia machines, providing a cost-effective, high-performance alternative to OEM parts.
• Customized Design & Rapid Prototyping
  As a flexible China brick mold factory, we offer full customized brick machine mold services. From 3D design to final testing, we can develop unique interlocking molds or curbstone dies tailored to your local market requirements.

Available Mold Dimensions

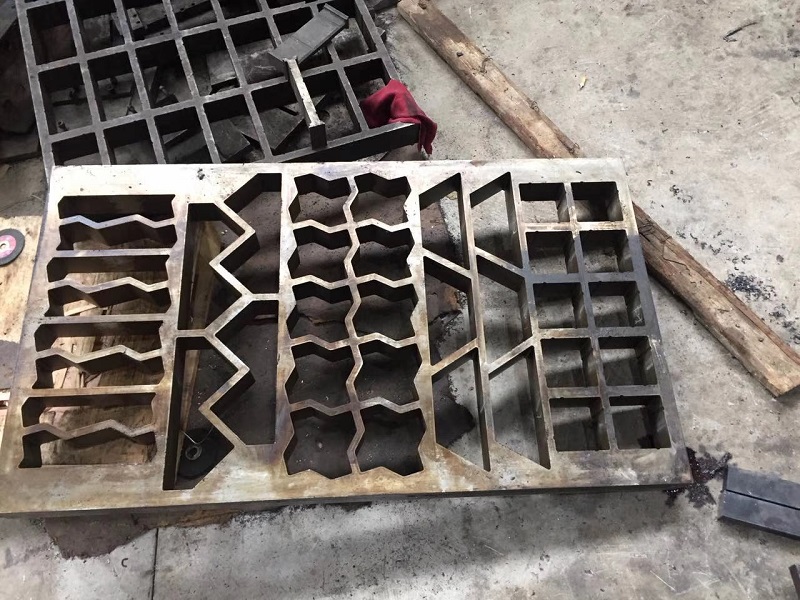

DRAX H Shape Interlocking Paver Blocks Machine Molds can be customized according to customer specifications and local market standards.

Common production dimensions include:

Thickness and cavity configurations can be adjusted according to machine model and production requirements.

concrete paver blocks

Compatible Block Machine Brands for OEM Mold Production

DRAX provides OEM and customized mold manufacturing services for multiple international concrete block machine brands.

Compatible machine brands include:

• Tiger block machine systems
• TEMA automatic block machine equipment
• HGMA block machine production lines
• ONNOH block machine platforms
• BESSER block machines
• HESS block systems
• MASA concrete block machines
• ZENITH block production equipment
• QGM automatic block machines
• Columbia block manufacturing systems
• REKERS block production machinery
• QUADRA block machines
• OMAG block machine lines
• TECHMATIK concrete block systems
• EURimpianti production equipment

Custom engineering support allows mold adaptation according to:

• Machine vibration systems
• Tamper head structures
• Mold frame dimensions
• Production capacity requirements
